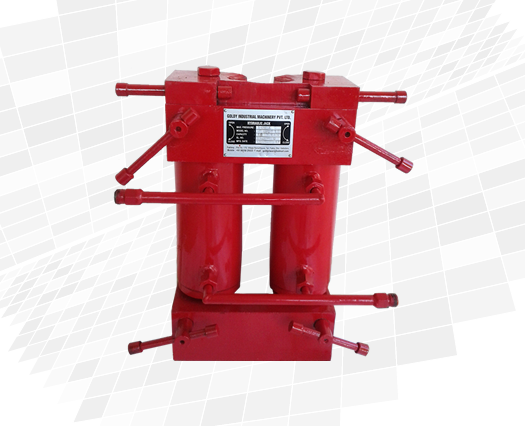

Jacking System

We manufacture Jacking equipment of the following configuration

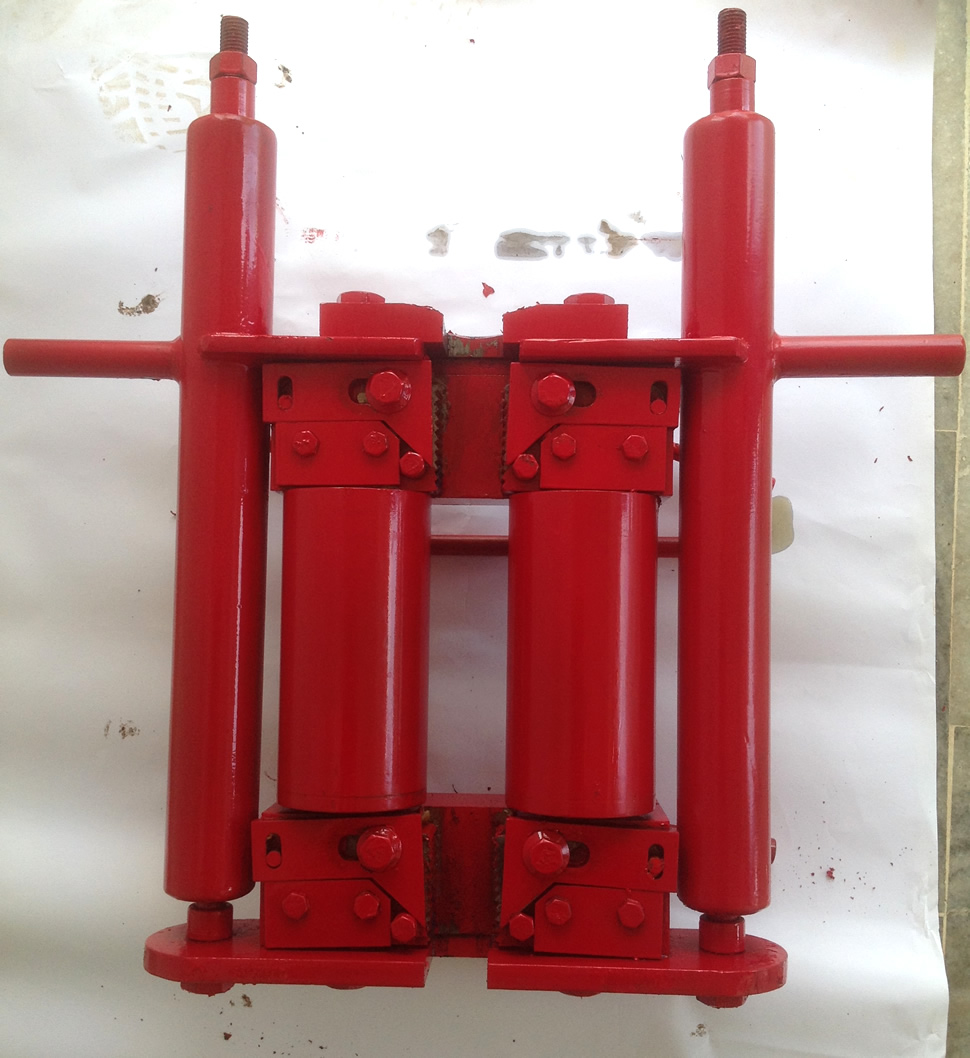

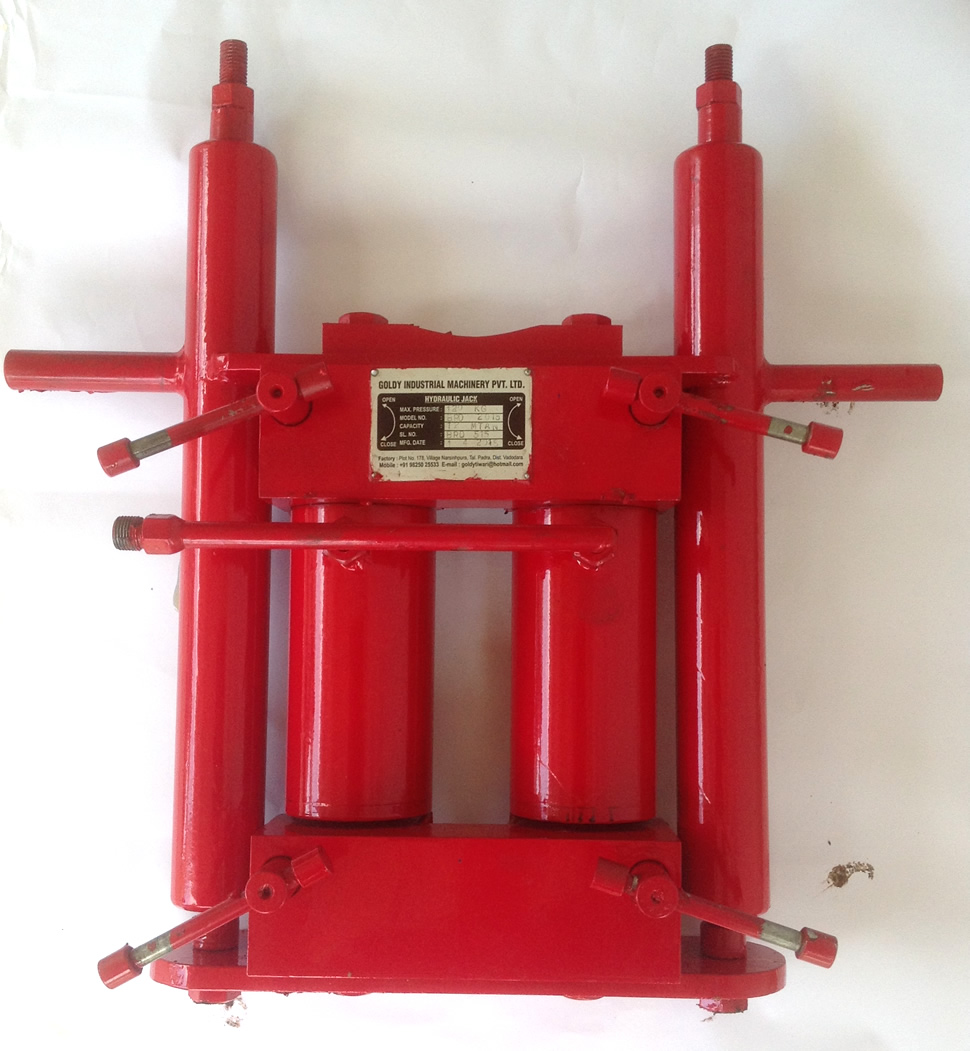

12 MT Single acting

Hydraulic Tank Jacks

12 MT double acting

Hydraulic Tank Jacks

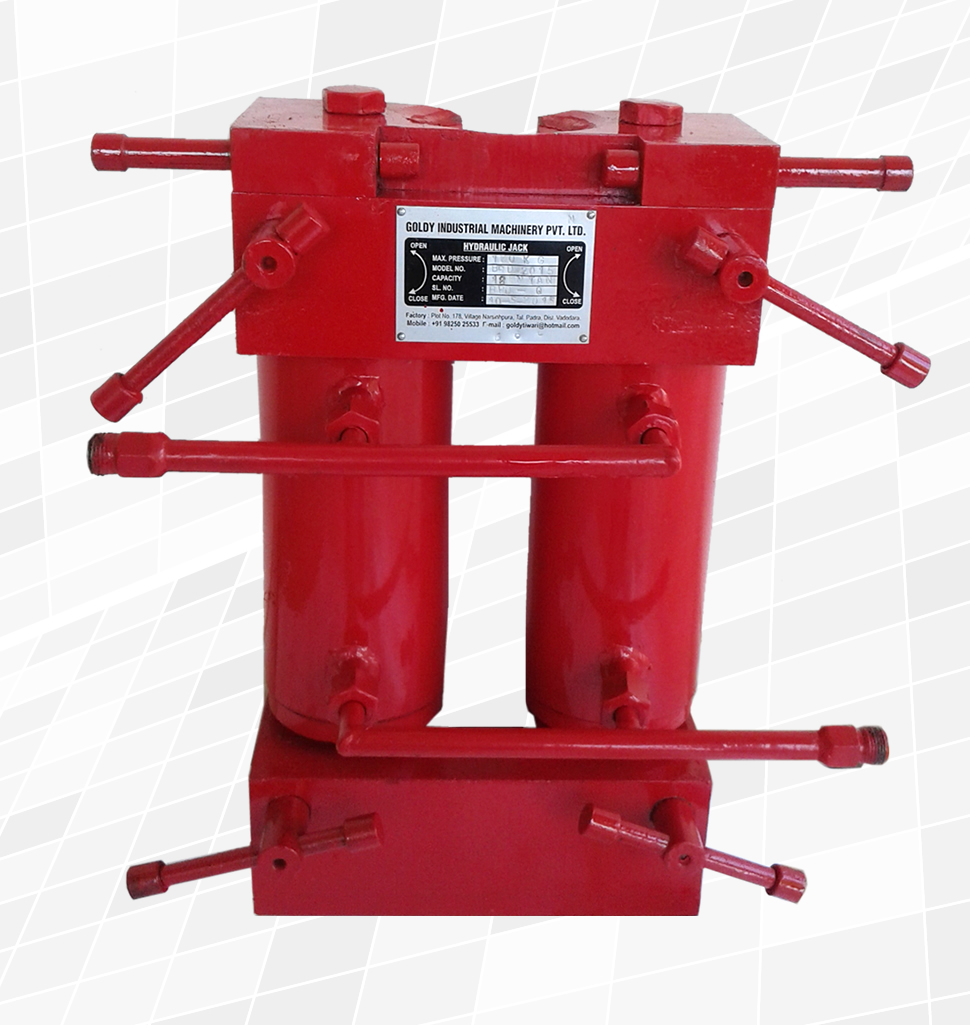

18 MT double acting

Hydraulic Tank Jacks

25 MT double acting

Hydraulic Tank Jacks

Each unit of Hydraulic Jacking Equipment consists of the following:

Item Quantity
Hydraulic Jacks
a. Jack with loading point 01 No.
Accessories for Jacks 01 Set
a. Trestle Box (for erecting 2500 mm width shell plates)
b. Stay Pipes
c. Sliding Chair & Lifting Arm
d. Stay Lugs (Upper and Lower)
e. Base Plates
1 No.
2 Nos.
1 No.
2 Set
1 No.
valve and fittings: 01 Set
a. Straight connection, T connection, Elbow Connector
b. High pressure stop cock valve
01 Set
01 No.
Hydraulic hoses: 01 Set
High pressure Hydraulic Hoses with ½” BSP end fittings in assorted lengths (7.5 metre)


  • Construction & Dismantling of tanks
  • Shifting / Moving of tanks
  • Replacement of Bottom Plates of tanks
  • Repairs of Tank Foundation for:
    • Fixed Cone
    • Floating Roof Tanks, Double Walled Tanks
    • Column Supported Roof Tanks
    • Storage Tanks at Elevation


  • Safety First
  • No Scaffolding required
  • Welding at ground level
  • Lesser Manpower
  • Easier Inspection
  • Faster Erection
  • Jacking used the world over
